APPLICATION£ºMEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER
SPECIALITY£º
* BURGLARPROOF FUNCTION
* SPECIAL BURGLARPROOF STRUCTURE OF THE CAP AND THE PROTECTIVE RING
* HIGH ACCURACY
* NEGLIGIBLE HEAD LOSS AT WORKING FLOW-RATE
* MAGNET DRIVE WITH ANTI-MAGNETIC
* HIGH-QUALITY MATERIAL WITH LONG LIFE OF SERVICE
* RELIABLE IN DATA COLLECTING , HERMETICALLY SEALED REGISTER
* THE REGISTER IS SEALED AND IT COULD BE IN ANY POSITION WITHIN 360¡ã,WHICH IS CONVENIENT FOR INSTALLATION.
WORKING CONDITION:
* THE MAX. ADMISSIBLE WATER PRESSURE: 1.6MPa
* WATER TEMPERATURE: WATER TEMP. UP TO 50¡æ
Maximum permissible error:
Between qt (included) and qs is ¡À2%;
Between qmin and qt (excluded) is ¡À5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE
SPECIFICATION AND OVERAL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal size |
mm |
DN15 |
DN20 |
DN25 |
DN32 |
DN40 |
DN50 |
|
inch |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
|
Overload flow-rate (qs) |
m3/h |
3 |
5 |
7 |
12 |
20 |
30 |
|
Permanent flow-rate (qp) |
m3/h |
1.5 |
2.5 |
3.5 |
6 |
10 |
15 |
|
Transitional flow-rate (qt) |
l/h |
120 |
200 |
280 |
480 |
800 |
3000 |
|
Minimum flow-rate (qmin) |
l/h |
30 |
50 |
70 |
120 |
200 |
450 |
|
Min. reading |
l |
0.05 |
0.05 |
0.05 |
0.05 |
0.5 |
0.5 |
|
Max. reading |
m3 |
99999.9999 |
99999.9999 |
99999.9999 |
99999.9999 |
999999.999 |
999999.999 |
|
Nominal pressure |
MPa |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
¦¤Pmax at qs |
MPa |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
|
L |
mm |
165 |
190 |
260 |
260 |
300 |
300 |
|
I |
mm |
245 |
290 |
380 |
380 |
440 |
440 |
|
H |
mm |
105 |
106 |
121 |
126 |
170 |
170 |
|
h |
mm |
28 |
28.5 |
38 |
43 |
63 |
63 |
|
B |
mm |
90 |
90 |
90 |
90 |
138 |
138 |
|
D |
inch |
G3/4B |
G1B |
G1 1/4B |
G1 1/2B |
G2B |
G2 1/4B |
|
d |
inch |
R1/2 |
R3/4 |
R1 |
R1 1/4 |
R1 1/2 |
R2 |
|
Weight |
with counections |
Kg |
1.2 |
1.6 |
2.9 |
3.27 |
5.48 |
6.65 |
|
without counections |
1 |
1.3 |
2.1 |
2.7 |
4.6 |
5 |

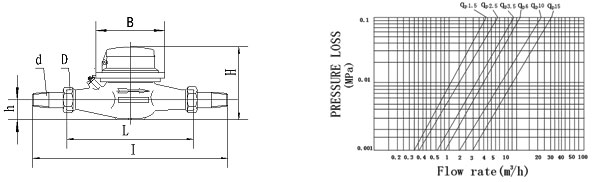

OVERALL DIMENSIONS PRESSURE LOSS CURVE
 |
