APPLICATION£ºMEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER
SPECIALITY£º
* GEARING BOX IS MADE OF HIGH QUALITY COPPER
* BURGLARPROOF FUNCTION
* SPECIAL BURGLARPROOF STRUCTURE OF THE CAP AND THE PROTECTIVE RING
* HIGH ACCURACY AND LARGE MEASURING RANGE
* NEGLIGIBLE HEAD LOSS AT WORKING FLOW-RATE
* MAGNET DRIVE WITH ANTI-MAGNETIC
* HIGH-QUALITY MATERIAL WITH LONG LIFE OF SERVICE
* RELIABLE IN DATA COLLECTING , HERMETICALLY SEALED REGISTER
* THE REGISTER IS SEALED AND IT COULD BE IN ANY POSITION WITHIN 360¡ã,WHICH IS CONVENIENT FOR INSTALLATION.
WORKING CONDITION:
* THE MAX. ADMISSIBLE WATER PRESSURE: 1.6MPa
* WATER TEMPERATURE: WATER TEMP. UP TO 50¡æ
Maximum permissible error:
Between qt (included) and qs is ¡À2%;
Between qmin and qt (excluded) is ¡À5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE
SPECIFICATION AND OVERAL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal size |
mm£¨inch£© |
DN15(1/2¡±) |
|
Overload flow-rate (qs) |
m3/h |
3 |
|
Permanent flow-rate (qp) |
m3/h |
1.5 |
|
Transitional flow-rate (qt) |
l/h |
120 |
|
Minimum flow-rate (qmin) |
l/h |
30 |
|
Min. reading |
l |
0.05 |
|
Max. reading |
m3 |
99999.9999 |
|
Nominal pressure |
MPa |
1.6 |
|
¦¤Pmax at qs |
MPa |
0.08 |
|
L |
mm |
165 |
|
I |
mm |
245 |
|
H |
mm |
113.5 |
|
h |
mm |
28 |
|
B |
mm |
82.5 |
|
D |
inch |
G3/4B |
|
d |
inch |
R1/2 |
|
Weight |
With counections |
Kg |
1.25 |
|
Without counections |
1.10 |

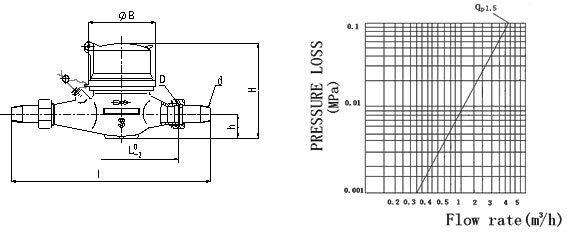

OVERALL DIMENSIONS PRESSURE LOSS CURVE
 |
