APPLICATION£ºMEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER£¬IT IS SUITABLE FOR DOMESITIC USE.
SPECIAL FEATURE£º
* SIMPLE DESIGN
* HERMETICALLY SEALED REGISTER
* MINERAL TEMPERED GLASS
* HIGH ACCURACY
* NEGLIGIBLE HEAD LOSS AT WORKING FLOW-RATE
* MAGNET DRIVE WITH ANTI-MAGNETIC SHIELD
* HIGH-QUALITY MATERIAL WITH LONG LIFE OF SERVICE
* REMOTE READING SYSTEM, RELIABLE IN DATA COLLECTING
* WITH THE PULSE DEVICE, AND THE MEASURED WATER VOLUME OF PER PULSE MAY BE 1L/P, 1L/P OR 1L/P.
WORKING CONDITION:
* The max. admissible water pressure: 1.6MPa
* Water temperature:
Cold water temperature up to 50¡æ
Hot water temperature up to 90¡æ(Available)
Maximum permissible error:
Between qt (included) and qs is ¡À2%;
Between qmin and qt (excluded) is ¡À5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE
SPECIFICATION AND OVERALL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal size |
mm |
15 |
20 |
|
inch |
1/2 |
3/4 |
|
Overload flow-rate (qs) |
m3/h |
3 |
5 |
|
Permanent flow-rate (qp) |
m3/h |
1.5 |
2.5 |
|
Transitional flow-rate (qt) |
l/h |
120 |
200 |
|
Minimum flow-rate (qmin) |
l/h |
30 |
50 |
|
Min. reading |
l |
0.05 |
0.05 |
|
Max. reading |
m3 |
99999.9999 |
99999.9999 |
|
Max. working pressure |
MPa |
1.6 |
1.6 |
|
¦¤Pmax at qs |
MPa |
¡Ü0.1 |
¡Ü0.1 |
|
L |
mm |
165 |
190 |
|
I |
mm |
245 |
294 |
|
B |
mm |
86 |
86 |
|
G |
inch |
G 3/4 B |
G 1 B |
|
R |
inch |
R 1/2 |
R 3/4 |
|
h |
mm |
126 |
126 |
|
H |
mm |
200 |
200 |
|
Weight |
Without connections |
Kg |
1.02 |
1.18 |
|
With connections |
1.20 |
1.46 |

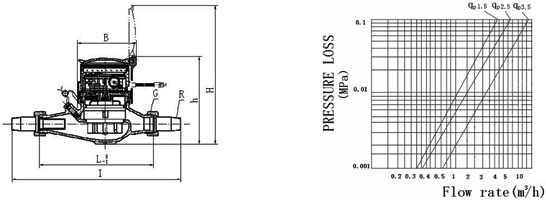

OVERALL DIMENSIONS PRESSURE LOSS CURVE
 |
