APPLICATION£º MEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER£¨ALSO SUITABLE FOR PURE WATER£©
OPERATING CONDITION:
THE MIN.ADMISSIBLE WATER PRESSURE 1.6MPa
RESISTING WATER TERPERATURE OF 50¡æ
SPECIALITY:
* LOW START-UP FLOW-RATE
* INSTALLATION IN ANY POSITION (SUCH AS LEVEL, VERTICAL)
* POSITIVE ROTATING PISTON TYPE, WITH RELIABLE PERFORMANCE
* HIGH ACCURACY
* BRASS BODY
* THIS SERIES CAN BE EQUIPPED WITH THE PULSE DEVICE
Maximum permissible error:
Between qt (included) and qs is ¡À2%;
Between qmin and qt (excluded) is ¡À5%.
NOTE: The technical data conform to ISO4064 standard, class C.
FLOW-ERROR CURVE
SPECIFICATION AND OVERAL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal Size |
mm |
DN15 |
DN20 |
DN25 |
DN32 |
DN40 |
|
inch |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
|
Overload flow-rate (qs) |
m3/h |
3 |
5 |
7 |
12 |
20 |
|
Permanent flow-rate (qp) |
m3/h |
1.5 |
2.5 |
3.5 |
6 |
10 |
|
Transitional flow-rate (qt) |
l/h |
22.5 |
37.5 |
52.5 |
90 |
150 |
|
Minimum flow-rate (qmin) |
l/h |
15 |
25 |
35 |
60 |
100 |
|
Min. reading |
l |
0.05 |
0.05 |
0.05 |
0.5 |
0.5 |
|
Max. reading |
m3 |
9999.9999 |
9999.9999 |
9999.9999 |
99999.999 |
99999.999 |
|
Nominal pressure |
MPa |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
¡÷P at qs |
MPa |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
|
L |
mm |
195 |
267 |
319 |
384 |
428 |
|
I |
mm |
115 |
165 |
199 |
260 |
300 |
|
B |
mm |
43 |
43 |
53 |
60 |
77 |
|
Weight |
With connections |
Kg |
1.14 |
1.56 |
2.48 |
3.47 |
5.65 |
|
Without connections |
0.97 |
1.30 |
2.05 |
2.75 |
4.70 |

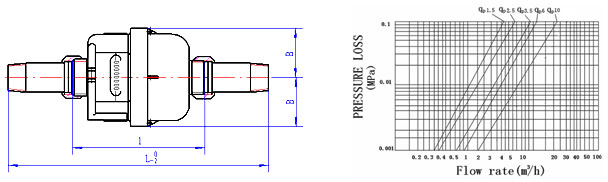

OVERALL DIMENSIONS PRESSURE LOSS CURVE
 |
