APPLICATION£º MEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER£¨ALSO SUITABLE FOR PURE WATER£©.
OPERATING CONDITION:
*THE MAX.ADMISSIBLE WATER PRESSURE 1.6MPa
*RESISTING WATER TERPERATURE OF 50¡æ
SPECIALITY£º
* LOW START-UP FLOW-RATE
* INSTALLATION IN ANY POSITION (SUCH AS LEVEL, VERTICAL)
* POSITIVE ROTATING PISTON TYPE, WITH RELIABLE PERFORMANCE
* HIGH ACCURACY
* BRASS BODY
* ON REQUEST£¬THIS SERIES CAN BE EQUIPPED WITH THE PULSE DEVICE
Maximum permissible error:
Between qt (included) and qs is ¡À2%;
Between qmin and qt (excluded) is ¡À5%.
NOTE: The technical data conform to ISO4064 standard, class C.
FLOW-ERROR CURVE
SPECIFICATION AND OVERAL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal size |
mm£¨inch£© |
DN15 ( 1/2¡å) |
DN20( 3/4¡å) |
DN25 ( 1¡å) |
|
Overload flow-rate (qs) |
IMP.GAL/h |
660 |
1100 |
1540 |
|
Permanent flow-rate (qp) |
IMP.GAL/h |
330 |
550 |
770 |
|
Transitional flow-rate (qt) |
IMP.GAL/h |
4.95 |
8.25 |
11.55 |
|
Minimum flow-rate (qmin) |
IMP.GAL/h |
3.3 |
5.5 |
7.7 |
|
Min. reading |
IMP.Gallons |
0.01 |
0.01 |
0.01 |
|
Max. reading |
IMP.Gallons |
9999999.9 |
9999999.9 |
9999999.9 |
|
Nominal pressure |
MPa |
1.6 |
1.6 |
1.6 |
|
¦¤P at the qs |
MPa |
¡Ü0.1 |
¡Ü0.1 |
¡Ü0.1 |
|
L |
mm |
195 |
267 |
319 |
|
I |
mm |
115 |
165 |
199 |
|
B |
mm |
43 |
43 |
53 |
|
Weight |
With connections |
Kg |
1.14 |
1.56 |
2.48 |
|
Without connections |
0.97 |
1.30 |
2.05 |

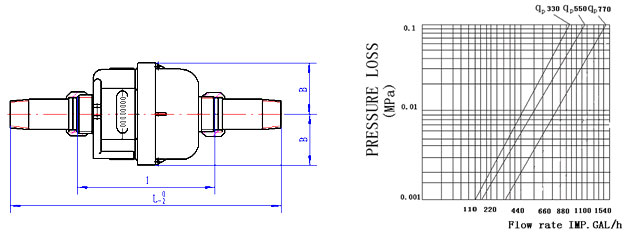

OVERALL DIMENSIONS PRESSURE LOSS CURVE
 |
