This type of water meter also can be used for a remote reading transmission system as equipped with a built-in sensor.
APPLICATION: To totalize the total volume of cold (hot) water passing through the pipeline.
WORKING CONDITION:
The max.admissible water pressure: 1.6MPa.
Water temperature: 0.1¡æ~50¡æ.
FEATURES:
--The water meters of this series were especially designed to give a reliable measurement of waters carrying also solid particles.
--Head lose of the meters are negligible, enabling efficient operation to be maintained where only a limited head of water is available.
--The body and cap flange are coated by an epoxy varnish treatment to insure better anticorrosive effect during long service time.
--Capsulated counter can give clear reading even when the water is dirty; Reed contact for remote reading can supplied upon request¡£
--The self-cleaning propeller of three blade design avoids clogging by grass or other solid particles held in the water; The measuring mechanism is robust in construction with few moving parts subject to wear, and can be easily removed for inspection and maintenance¡£ --The meters are very suitable for irrigated water and can be employed also for intermittent or seasonal services. Upon request, the water meter could be equipped with a kind of remote transmission device. Pulse output has 100L/P and 1000L/P to choice.
MAXIMUM PERMISSIBLE ERROR:
From transitional flow up to maximum flow both inclusive: ¡À2%;
From minimum flow inclusive up to transitional flow: ¡À5%.

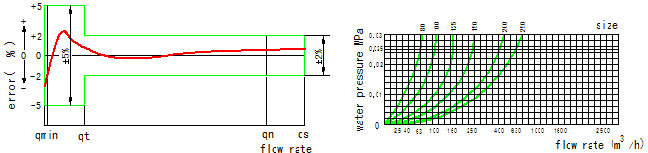

FLOW-ERROR CURVE PRESURE LOSS-ERROR CURVE
DIMENSIONS AND WEIGHTS
